Dimensions and weights.
Gate valve class 150 weight.
Valvotubi è un azienda rinomata per la sua progettazione e la produzione di valvole industriali a saracinesca a farfalla di ritegno.
1 inch 2 inch 6 inch 12 inch 14 inch 18 inch 20 inch 24 inch 30 inch 42 inch.
Class 150 gate valves consist of a square joint in 2 and an oval one for all other sizes.
Gate valves api 600 gate valves class 150 dimensions and weights nom size in 2 21 2 3 4 5 6 8 10 12 14 16 18 20 24 26 28 30 32 36 42 48 face to face.
Face to face dimensions flanged valves.
Testing standards api ansi mss iso.
Class 300 and 600 valves consist of a circular spiral wound gasket.
Class 150 300 800.
Outside screw and yoke bolted bonnet flexible or solid wedge rising stem with top sealing.
Standard materials are a216wcb f6 other materials and other trims are available.
Home datasheets valve datasheets gate valve datasheetsvalve gate wedge ansi class 150 2500 cs weight in email print valve gate wedge ansi class 150 2500 cs weight in written by matt milbury on 21 february 2016.
Dimensions and tolerances in accordance with ansi asme b16 5 for sizes 1 2 to 24.
The features of these cast steel gate valves are.
Browse gate valves class 150 in the bonney forge catalog including item size connection type material class weight cv.
Pressure class 150 2500.
Posted in gate valve datasheets.
Gate valve weight chart gate valves dimension chart gate valves dimensions class 150 class 300 class 600 class 900 gate valves dimensions in mm gate valves dimensions.

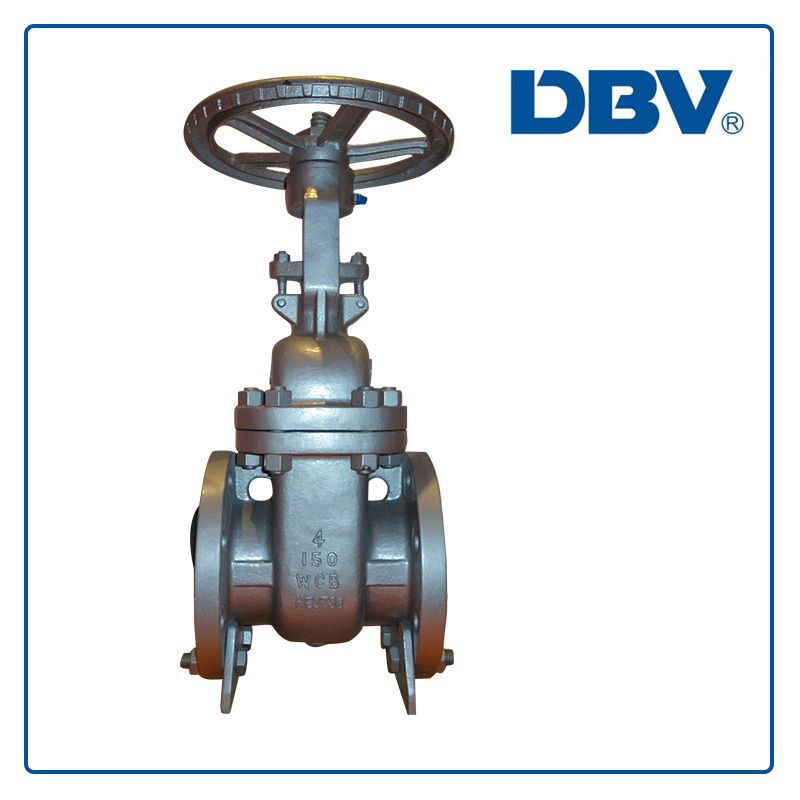

Crane cast steel gate valves.
Weights chart page2 of20 gate valve class 150 mps in dn mm wt rf kg wt bw kg 2 50 19 15 2 1 2 65 26 18 3 80 35 25 4 100 49 41 5 125 64 58 6 150 81 69 8 200 127 108 10 250 204 156 12 300 291 248 14 350 400 365 16 400 486 482 18 450 810 687 20 500 768 752 24 600 1144 1178 26 650 1570 1521.
The cast steel gate valves are manufactured according to api ansi asme standard for industrial applications.
The design of the body bonnet gaskets varies depending on the class of the valve.
Class 150 outside screw yoke flexible wedge disc figure 47 47 1 2 class 300 outside screw yoke flexible wedge disc figure 33 33 1 2 class 600 outside screw yoke flexible wedge disc figure 76 76 1 2.
